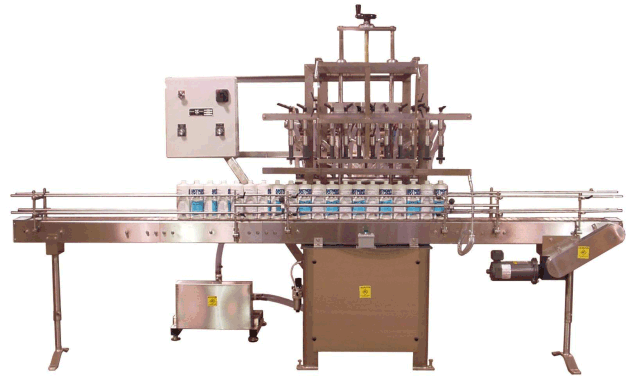

Semi Automatic Filler with Power Conveyor

Packaging Dynamics, Ltd.’s Semi-Automatic “Fill-to-Level” Liquid Filler was engineered for an economical method of filling liquids.  Standard features include Stainless Steel construction, 10 foot power conveyor,  product pump, supply tank and stainless steel contact parts.

The operator extends the manual container stop, energizes the powered conveyor and the containers to be filled will move into position.  Then a simple push of the start button initiates the filling cycle. The nozzles descend and the fill cycle starts.  Upon completion of the fill cycle the nozzle bar assembly moves upward automatically, the conveyor begins to move and the operator retracts the manual stop.

Also included are Quick change nozzle and conveyor rail adjustment handles that aid in reducing expensive change over periods.
