The

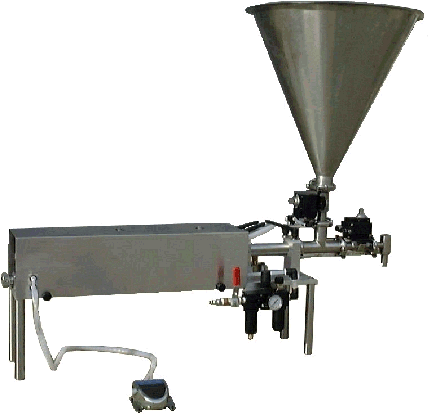

Packaging Dynamics, Ltd. Portable Single Head Piston Filler model PF-1RV
has been engineered to provide an economical and convenient way for
filling small production runs of today’s thick or thin liquid products
with high accuracy.
This machine is a pneumatically controlled volumetric piston filler
and only needs compressed air. To adjust the volume being discharged,
close the ball valve on the inlet side of the regulator, turn the volume
adjustment knob on the rear of the machine and then open the inlet valve.
Place a container under the nozzle and depress the foot pedal. At the
completion of the filling cycle, the cylinder will retract and recharge
the piston. A filled container can then be moved along manually. This filler can
also be used in conjunction with a slide plate, a portable cart, a powered
conveyor, additional units or fully automatic.
|
