Rotary Gear Lobe Pump Liquid Filler by Packaging Dynamics, Ltd.

Rotary Gear/Lobe Pump Filler

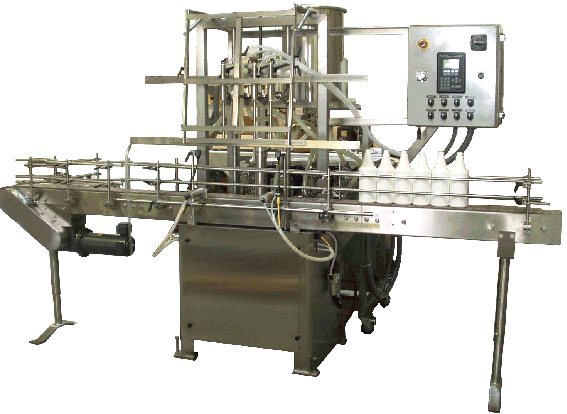

The Packaging Dynamics, Ltd., Inline Rotary Pump Liquid Filler model SLA-G was designed to deliver an accurate means for filling thin to very viscous products without overflowing or volume limitations! An individual servo motor coupled with a gear or Lobe pump is mounted behind the machine frame and supplies product to each individual filling head. This allows for a large variety of container types to be filled, from 2 oz. to 5 gallon pails. Automatic Indexing allows bottles to enter and exit the fill area smoothly. An Allen Bradley PLC controlled and a Panel View operator interface control the independent nozzle time settings. Each filling head can be turned on or off and individually adjusted.

With stainless steel construction, Allen Bradley nema 4 electric’s, quick change nozzle handles and variable speed conveyor; the SLA-G provides easy change over and cleanup between product runs.

Custom layouts and line integration are also available.
