Rotary Gear/Lobe Pump Liquid Fillers
(Specifications Page)

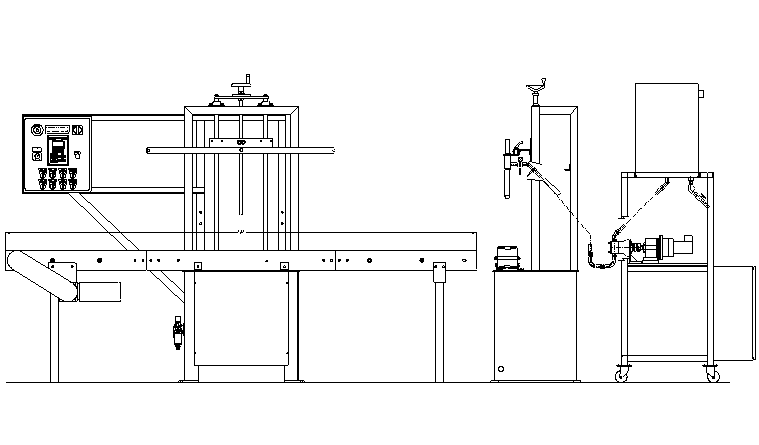

Rotary Gear Lobe Pump Liquid Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

Features
Allen Bradley PLC Controlled Complete Set of Positive Closure Nozzles Stainless Steel & FDA Approved Contact Parts Servo Controlled Dispensing System A� = 10� Long Conveyor System	Quick Change Rail Adjustments Product Level Float Switch Monitor Product Supply Pump NEMA 4 Electrics 30 Gallon Polyethylene Tank

Options
Stainless Steel Product Tank Stainless Steel Product Pump Bottom Fill Nozzles Product Mixer Nozzle Drip Tray Bottom Feed Nozzles Ceilcoat Finish (Acid Applications) Stainless Steel Transfer Plates	Product Pump Mounted on Portable Cart Larger Fill Valves Power Conveyor Sanitary Connections Full Line Integration Star Wheel Indexing

Specifications
Description
Container Size Range:	6 oz to 5 gallon pails and more.
Nozzles available:	2 to 6
Controls:	Allen Bradley PLC Controlled Nozzle.
Production rate:	20 to80 Containers/Minute Depending of Container & Product Conditions
Construction Material:	Stainless steel
Overall dimensions:	79.5�H x 40.0�W x 27.5�D
Electrics Requirements:	220 VAC / 1 or 3� / 60 Hz
Air consumption:	2 to 4 scfm
