Acid Resistant Automatic Straight Line Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

Visit us at the
Pack Expo 2010

We'll be at booth #4243

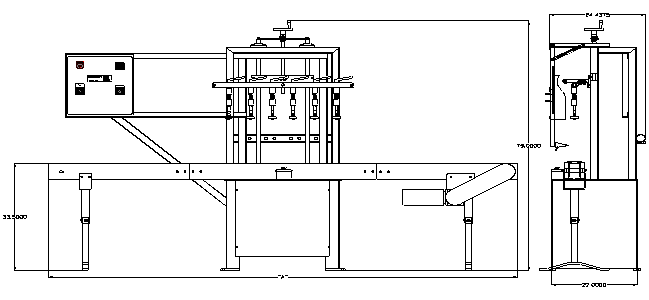

Semi Automatic Filler With Power Conveyor
(Specifications Page)

Semi Automatic Liquid Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

A= 6, 8, 10 and 12 foot conveyors available

Features
Semi-Automatic Stainless Steel Frame & Conveyor Diaphragm pump Supply tank Nema 4 control package	Stainless steel contact parts Fill to level system Quick change rail adjustment Quick change nozzle adjustment Power Conveyor System

Options
Stainless steel tanks Ceilcoat Finish Explosion-proof Construction Splash Guard Bottom Fill Nozzles Centering devices Sanitary connections Explosion Proof Electrics Automatic Bottle Indexing & Logic Control	All Plastic Construction (Acid) 110v or 230v AC operation Product mixer Stainless steel transfer plates Vacuum system Gravity Feed system Fiberglass Resin Coating Drip Tray Incase Filling

Specifications

Description
Container Size:	2 oz to 2 1/2 gallons
Nozzles Available:	4 to 12
Construction:	Stainless steel
Overall Dimensions:	79�H x 64�W x 34.5�D (excluding gravity feed tank)
Air Consumption:	8 to 10 scfm
Weight:	Approximately 700 lbs.
Electrical Requirements:	110 V AC / 1 PH / 60 HZ
Production Rate:	Operator Dependent
