Fill-To-Level Automatic Straight Line Filler
 (Specifications Page)
Fill-To-Level Automatic Straight Line Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

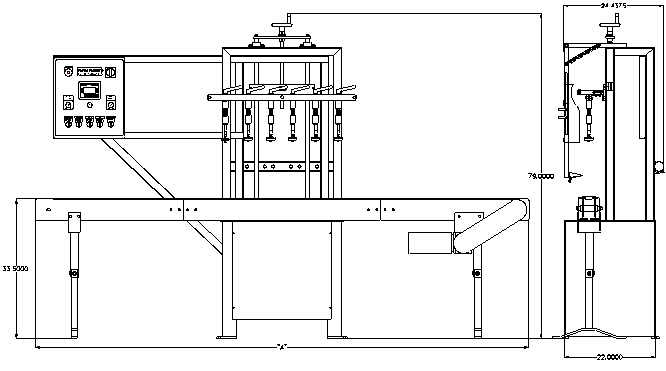

A= 6 ft, 8 ft, 10 ft, 12 ft and custom length


 Features:

  • Semi & Fully Automatic Versions
  • Stainless Steel Frame & Conveyor
  • Allen Bradley PLC & Interface Controller
  • Product Pump
  • Supply Tank
  • Nema 4 Control Box
  • 304 Stainless Steel Contact Parts
  • 10 foot Conveyor
  • Fill to Level System
  • Quick Change Rail Adjustment
  • Quick Change Nozzle Adjustment
  • 110/220 VAC Operation



 Options:

  • 316 Stainless Steel Contact Parts
  • Stainless Steel 20 to 40 Gallon Tank
  • Multiple Stage Filling
  • Explosion-proof Construction
  • Nozzle Drip Tray
  • Splash Guard
  • Bottom Feed Nozzles
  • Centering devices
  • Bottle container cleaner
  • All Plastic Construction (Acid)
  • Product Mixer
  • Vacuum system
  • Nitrogen purge
  • Full Line integration
  • Star Wheel Indexing
  • Sanitary connections
  • Custom conveyor length

Specifications:

 Description


Container Size Range: 2 oz to 2 1/2 gal (F-Style)
Nozzles Available: 2 to 12
Controls: Allen Bradley PLC and Operator Interface
Production Rate: 20 to 60 containers/minute depending on containers
Construction Material: Stainless steel
Overall Dimensions: 79"H x 72" to 120"W x 24 1/2"D
Air Consumption: 8 to 10 scfm
Electrical Requirements: 110/220 VAC
Weight: Approximately 800 lbs.



* Manufactured in the U.S.A.! *
