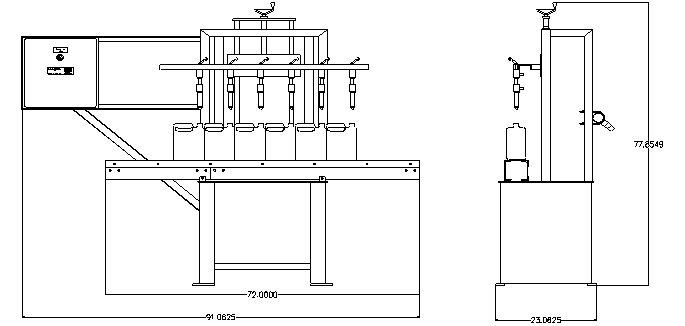

Semi Automatic Liquid Filler with Slide Plate
(Specifications Page)

Features
Semi-Automatic Stainless Steel Frame & Conveyor Diaphragm pump Polypropylene Supply tank Pneumatic control package	Stainless steel contact parts Fill to level system Quick change rail adjustment Quick change nozzle adjustment Slide Plate or Roller Conveyor System

Options
Stainless steel tanks Ceilcoat Finish Explosion-proof Construction Splash Guard Bottom Fill Nozzles Centering devices Sanitary connections Nema 4 or Explosion Proof Electrics Powered Conveyor Automatic Bottle Indexing & Logic Control	All Plastic Construction (Acid) 110v or 230v AC operation Product mixer Stainless steel transfer plates Vacuum system Gravity Feed system Drip Tray Incase Filling Fiberglass Resin Coating

Specifications

Description
Container Size Range:	2 oz to 2 1/2 gallons
Nozzles Available:	4 to 8
Controls:	Koyo PLC and Operator Interface
Construction:	Stainless steel
Overall Dimensions:	79�H x 64�W x 34.5�D (excluding gravity feed tank)
Air Consumption:	8 to 10 scfm
Weight:	Approximately 700 lbs.
