Low Profile Pail Filler
 (Specifications)
Low Profile Pail Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

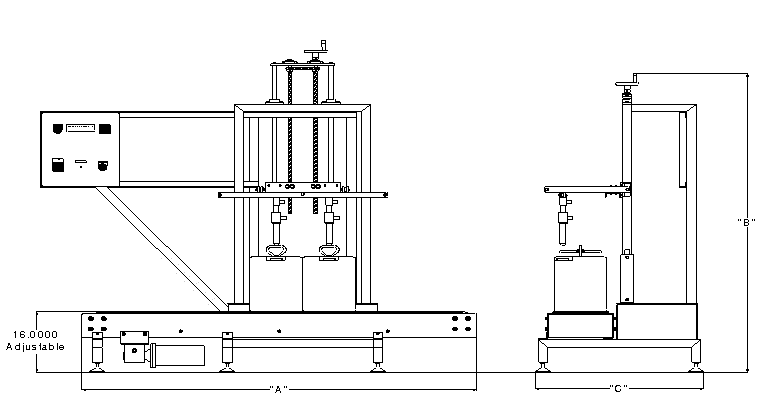

  • A = 6 ft, 8 ft, 10 ft, 12 ft and custom conveyor lengths are available
  • B = 79.00”
  • C = 34.50”

  Features:

  • Semi - Automatic
  • Stainless steel frame & conveyor
  • Diaphragm pump
  • Supply Tank
  • Nema 4 Control Box
  • Electronic Control Package
  • Stainless steel Contact Parts
  • Fill to Level System
  • Quick Change Rail Adjustment
  • Quick Change Nozzle Adjustment
  • 110v AC Operation
  • Conveyor System



Options:

  • Stainless steel 20 to 40 gallon tank
  • Ceilcoat finish
  • Explosion-proof construction
  • Splash guard
  • Bottom feed nozzles
  • Centering devices
  • Sanitary connections
  • All plastic construction (Acid)
  • 230v AC operation
  • Mild steel frame & conveyor
  • Product mixer
  • Stainless steel transfer plates
  • Vacuum system
  • Custom conveyor lengths

Specifications:

Description


Container Size: To 5 Gallons
Nozzles Available: 2 - 4
Construction: Stainless Steel
Overall Dimensions: 79”H x 64”W x 34.5”D ( Excluding Gravity Feed Tank )
Air Consumption: 8 - 10 scfm
Electrical Requirements: 110v AC / 1Ø / 60 Hz
Weight: Approximately 700 lbs.


* Manufactured in the U.S.A.! *
