Filling Nozzles
(Specifications Page)

Liquid Filling Nozzle specs page by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

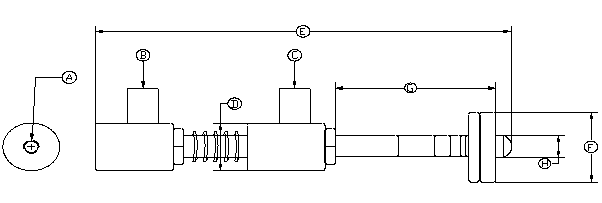

A=Attachment thread size	D=Cup diameter	G=Sleeve length
B=Liquid tube diameter	E=Overall length	H=Sleeve diameter
C=Overflow tube diameter	F=Space & Washer diameter

Features

Pressure/Gravity Fill to Level & Bottom Up Filling Nozzles

Vacuum Style Nozzles

Pressure/Gravity Positive
Closure Nozzles

Viton O-Ring seals
Sealing Washers
Graduated spacers
Dual liquid ports
316 SS Contact parts
SS sealing weights (Bottom-Up Nozzles)
Vacuum ports (Vacuum Nozzles)

316 SS construction
Viton O-Ring seals
Product & Vacuum ports

Viton O-Ring seals
Positive air cylinder shut off
316 SS contact parts
Extending & Retractable center rod

Options
Centering Devices Micro-adjusters High venting for viscous products Sanitary inlet & outlet fittings	Anti-foam port for foamy products Adaptable mounting heads PVC, Polypropylene, Hastelloy and Titanium construction Optional mounting styles

Specifications

Description
Typical Sizes:	A/4� - 1.5� (Fill to Level, Fill to Level w/Vacuum, Positive Closure) 1/2� - 1.5� (Bottom-Up)
Construction:	316 Stainless steel
Inlet / Outlet ports:	1/4� - 1.0� (Fill to Level, Fill to Level w/Vacuum) 3/8� - 1.0� (Bottom-Up, Positive Closure) 1/4� - 1.0� (Vacuum Nozzle)
PVC Spacers:	1/16�, 1/8�, 1/4�, 3/8�, 1/2�, 5/8�, 7/8�, 1 1/2�
*Sealing Washer:	Neoprene, Gum Rubber
*Back Up Washer:	PVC
*Sealing and Back Up Washers are available in various sizes, 2.00� are standard
