Bottom Fill-To-Level
Automatic Straight Line Liquid Filler
(Specifications Page)

Bottom Fill to Level Automatic Straight Line Liquid Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

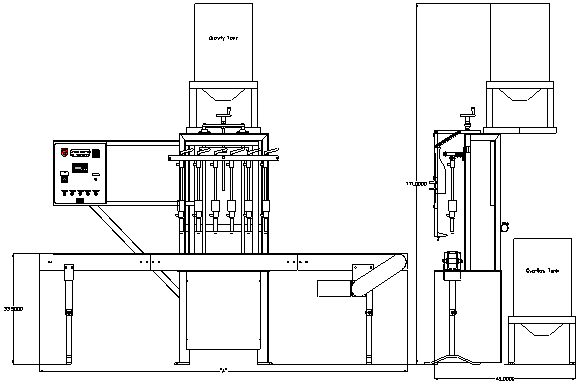

A= 6 ft, 8 ft, 10 ft, 12 ft and custom lengths

Features:

  • Semi and Fully Automatic versions
  • Stainless Steel Frame & Conveyor
  • PLC & Interface Controller
  • Product Pump
  • Supply & Or Gravity Tank
  • Nema 4 Control Box
  • 316 Stainless Steel Contact Parts
  • 10.0’ Length Conveyor
  • Bottom Fill, Fill to Level System
  • Quick Change Rail Adjustment
  • Quick Change Nozzle Adjustment
  • 110v AC Operation



Options:

  • Stainless Steel Overflow/Gravity Tanks
  • Ceilcoat Finish
  • Explosion-proof Construction
  • Nozzle Drip Tray
  • Splash Guard
  • Top Feed Nozzles
  • Centering devices
  • Air container cleaner
  • Custom conveyor lengths
  • All Plastic Construction (Acid)
  • 230v AC operation
  • Mild Steel Frame & Conveyor
  • Stainless Steel Transfer Plates
  • Product Mixer
  • Vacuum System
  • Full Line Integration
  • Star Wheel Indexing
  • Sanitary connections

Specifications:

Description


Container Size Range: 2 oz to 2 1/2 gal (F-Style)
Nozzles Available: 2 to 12
Controls: PLC and Operator Interface
Production Rate: 16 to 60 containers/minute depending on containers
Construction Material: Stainless steel
Overall Dimensions: 111”H x 72” to 120”W x 48”D
Air Consumption: 8 to 10 scfm
Electrical Requirements: 110v AC / 1Ø / 60 Hz
Weight: Approximately 1000 lbs.


* Manufactured in the U.S.A.! *
