Rotary Fillers
 (Specifications Page)

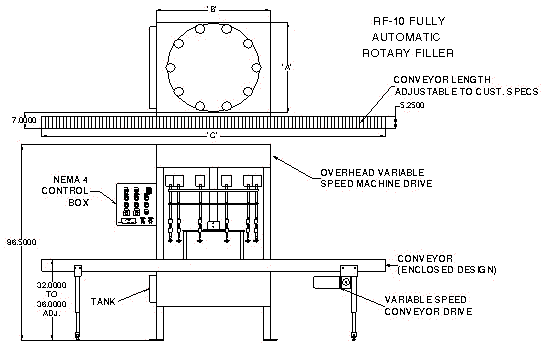

Automatic Rotary Liquid Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.



FRAME A B C
R10 40" 48" 144"
R20 60" 60" 144"
R30 72" 72" 144"



Features
  • Nema 4 electric package
  • 304 stainless steel contact parts
  • Product pump
  • One set of change parts
  • 12 ft. variable speed conveyor system
  • Heavy duty construction
  • Drip tray
  • Timing screw In-Feed system
  • All machine controls
  • Stainless steel guards
  • Electric eye pump speed controls
  • NC Designed & machined change parts
  • Quick change rail system
  • Free product testing



Options
  • Stainless steel construction
  • Container air cleaning system
  • Platform or pocket type
  • Single source supply
  • Color coordinated change parts
  • Photo eye drip tray shut off
  • Bottom up filling
  • Sanitary connections
  • Clutch Alignment Assemblies
  • L.E.D. Digital speed indicator
  • L.E.D. Container count indicator
  • Computer process control panel
  • Centering devices
  • Nema 7, Explosion-proof
  • Safety interlocks
  • Electronic Synchronization with other equipment
  • Fiberglass resin coating

Specifications

  Description


Container Size Range: 2 oz—1 1/2 gal
Nozzles Available: 12—48
Controls: Idec Nema 4 electric logic controls
Construction Material: Stainless Steel
Frame Size:  R10=40”x 48”x 88”, R20=60”x 60”x 88”, R30=72”x 72”x 88”
Overall Dimensions: Approximately 88”H x 144”W x 72”D model dependant
Air Consumption: 10—22 scfm (with vacuum system)
Electrical Requirements: 230v AC / 3Ø / 60 Hz
Weight: Varies 2,000 to 5,000 lbs. Model version dependant
